SS Series
Solar LED Street Light

All in two,separated design, small size, low transportation cost; simple installation, one-button intelligent switch, easy to use; all parts can be easily replaced, saving cost.
Intelligent controller, intelligent power automatic adjustment function matches PIR motion infrared sensor to ensure effective illumination brightness and endurance time.
With IR infrared remote control function, it is easy to realize the working mode (induction mode, time control mode, mixed mode) conversion; users can choose the optimal working mode according to different purposes and lighting conditions.
Professional waterproof design, waterproof rating IP65.
It adopts special waterproof plug-in connector, color proof design, reverse protection, missed connection, misconnection and other protection functions.
Support a variety of lamp arms to meet different latitude areas and different forms of lamp installation requirements.
Wind resistance rating: 41.5 m / s.

Municipal road, street, Public Park, parking lot, etc.

Model No.	LS-SS-830	LS-SS-850	LS-SS-860	LS-SS-880	LS-SS-8100
LED watt	30W	50W	60W	80W	100W
Solar panel	70W18V poly	90W18V poly	100W18V poly	130W18V poly	150W18V poly
Battery	Lithium 300WH 12V	Lithium 360WH 12V	Lithium 360WH 12V	Lithium 540WH 12V	Lithium 540WH 12V
LED brand	BridgeLux/Philips/Osram
Lumen	140lm/W
Lighting Angel	140*70°
CCT	3000K-6500K
Lifetime	50000H
Working Temp	一20℃~十60℃
IP Rating	IP67

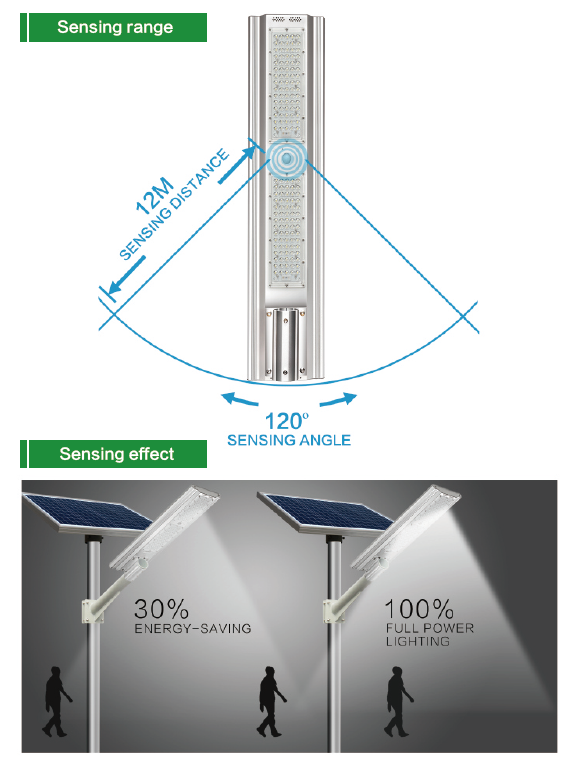

Motion sensoir	Detection angle120°，Distance 7-12m
Working mode	Motion mode/Timer control/Mixed mode
Charging time	6-8hours
Discharging time	10-12hours per day，3-5rainy days
Install height	5-6m	6-7m	7-8m	9-10m	10-12m
Material	Aluminum Alloy



Certificate	CE/ROHS/TUV/IP67
