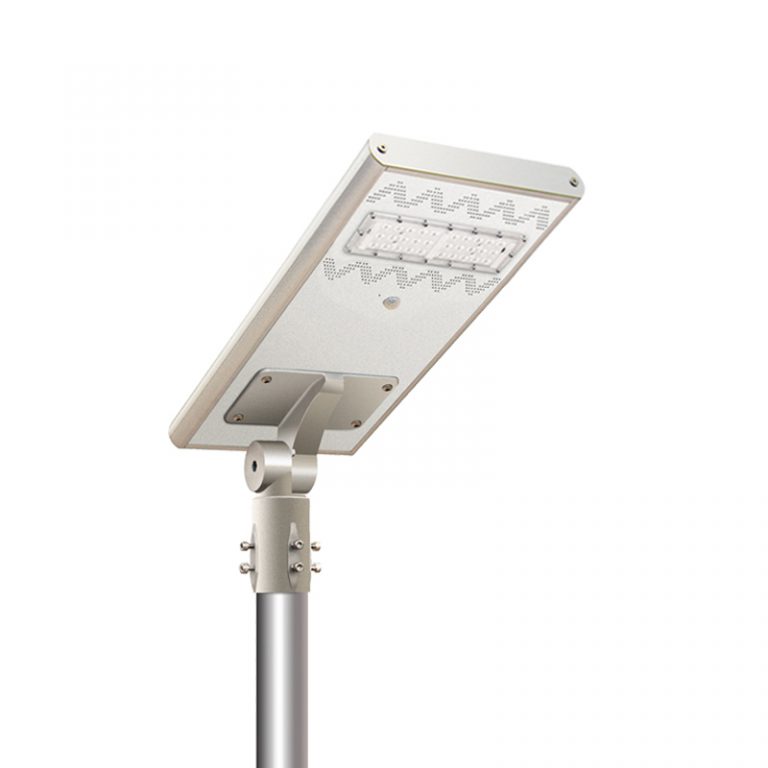

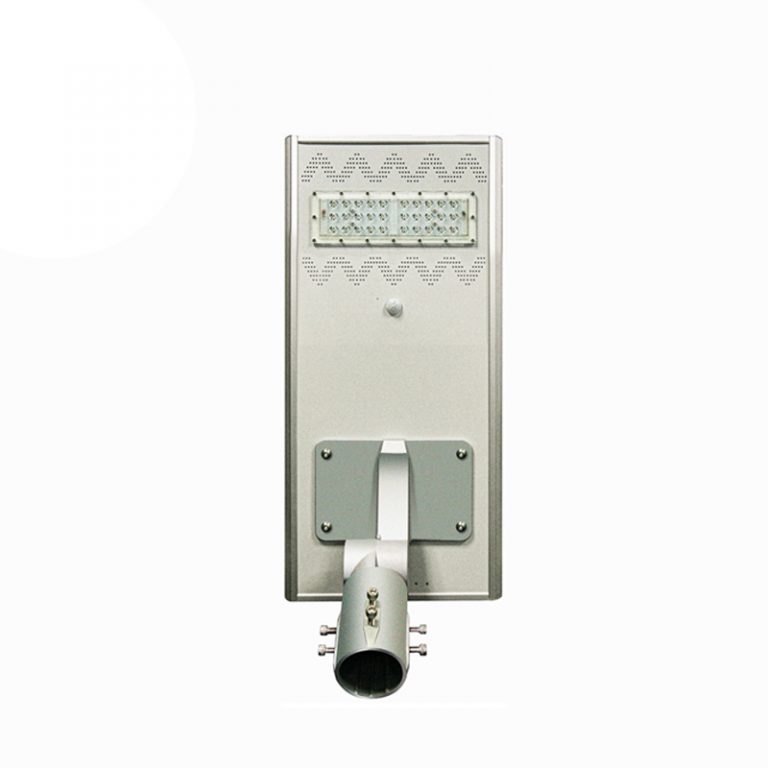

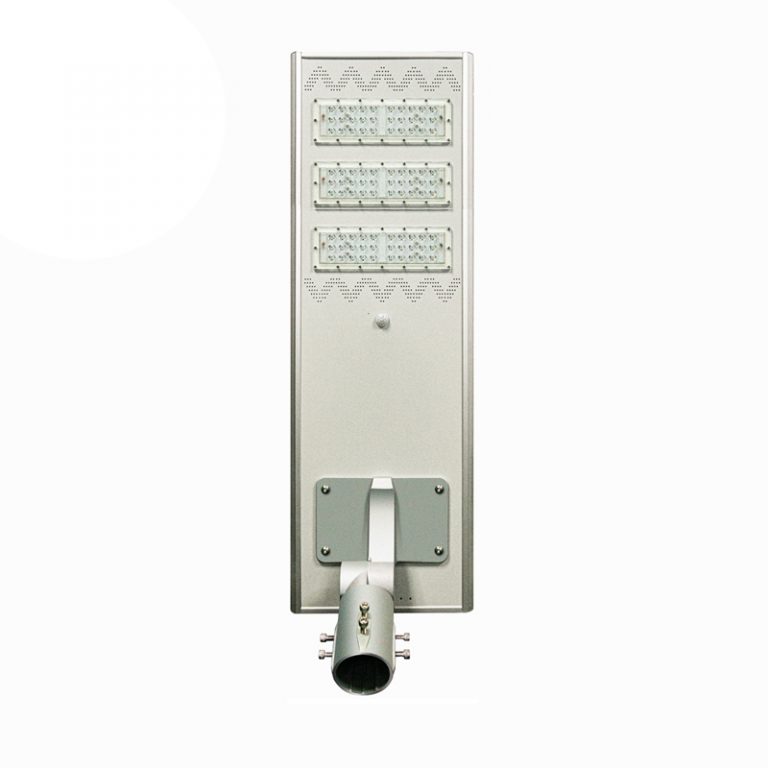

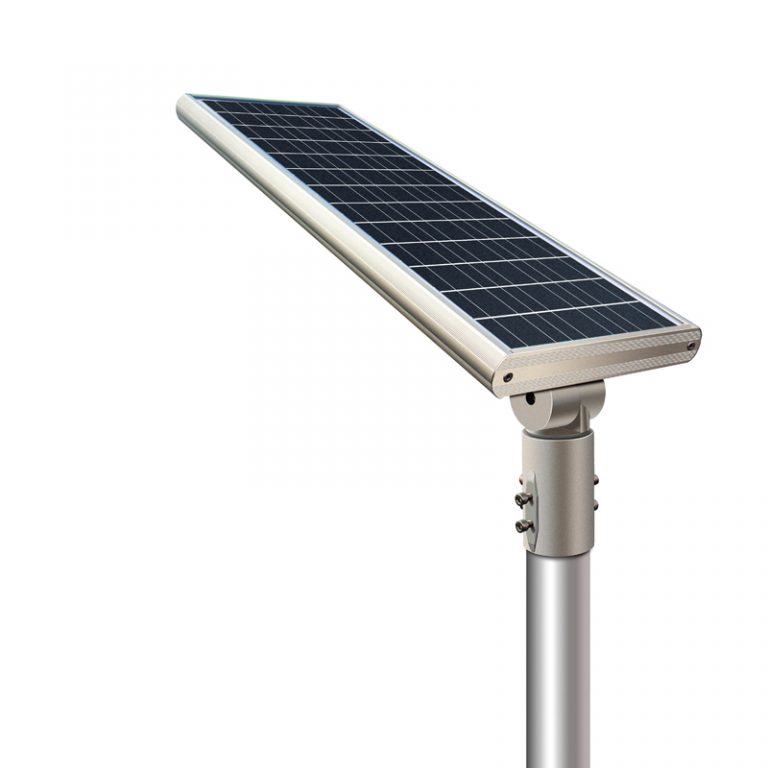

NC Solar LED Street Light

  • Integrated design, small size, low transportation cost; simple installation, one-button intelligent switch, easy to use; all parts can be easily replaced, saving cost.
  • Intelligent controller, intelligent power automatic adjustment function matches PIR motion infrared sensor to ensure effective illumination brightness and endurance time.
  • With IR infrared remote control function, it is easy to realize the working mode (induction mode, time control mode, mixed mode) conversion; users can choose the optimal working mode according to different purposes and lighting conditions.
  • Professional waterproof design, waterproof rating IP65.
  • It adopts special waterproof plug-in connector, color proof design, reverse protection, missed connection, misconnection and other protection functions.
  • Support a variety of lamp arms to meet different latitude areas and different forms of lamp installation requirements.
  • Wind resistance rating: 41.5 m / s.

Color Options

Color Option

Application

Municipal road, street, Public Park, parking lot, etc.

Technical Characteristics

Model No.LS-NC-220LS-NC-230LS-NC-240LS-NC-250LS-NC-260
LED watt20W30W40W50W60W
Solar panel23W18V poly38W18V poly38W18V poly40W18V poly48W18V poly
BatteryLithium  130WH3.7VLithium  190WH3.7VLithium  190WH3.7VLithium  230WH3.7VLithium  230WH3.7V
LED brandBridgeLux/Philips/Osram
 Lumen140lm/W
Lighting Angel140*70°
CCT3000K-6500K
Lifetime50000H
Working Temp一20℃~十60℃
IP RatingIP67
Motion sensoirDetection angle120°，Distance 7-12m
Working modeMotion mode/Timer control/Mixed mode
Charging time6-8hours
Discharging time10-12hours per day，3-5rainy days
Install height3-6m3-6m5-7m5-8m5-8m
MaterialDie-casting Aluminum Alloy
Product size526*297*54 mm813*300*54mm813*300*54mm915*297*54 mm915*297*54 mm
G. wt/Carton6.4KG8.2KG8.2KG10.5KG10.5KG
Package Size580*350*105 mm870*350*105 mm870*350*105 mm970*350*105 mm970*350*105 mm
CertificateCE/ROHS/TUV/IP67
