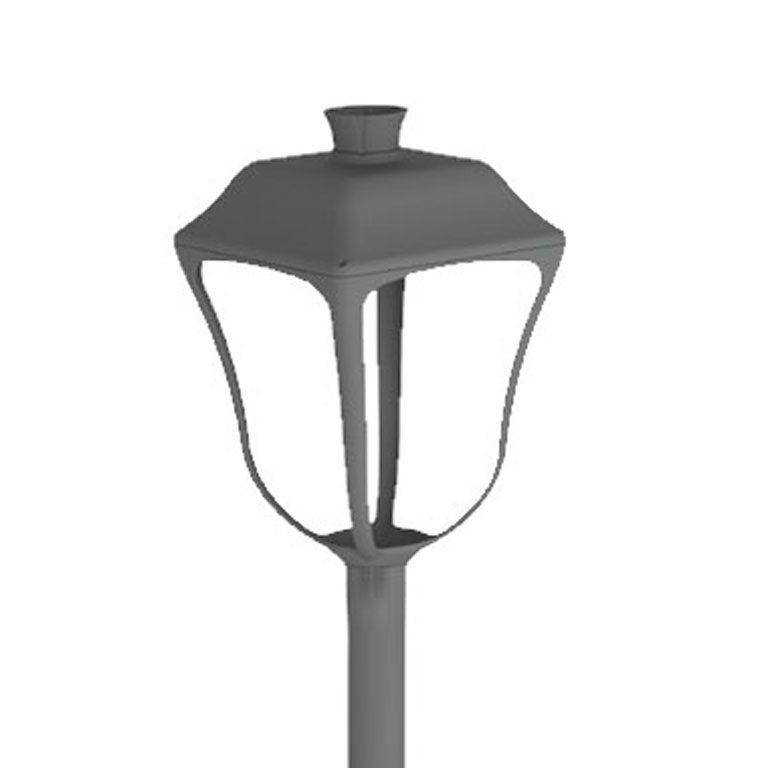

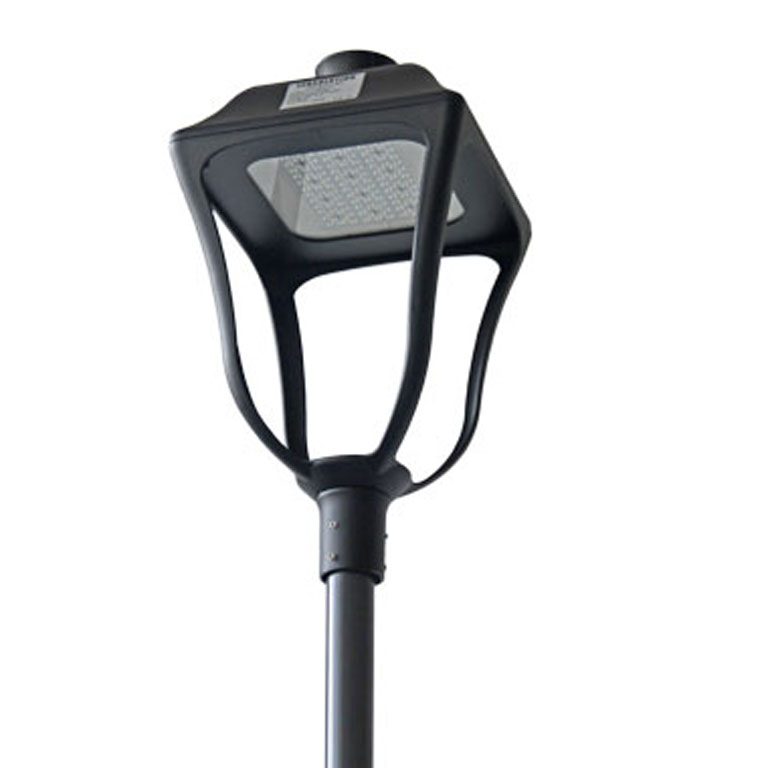

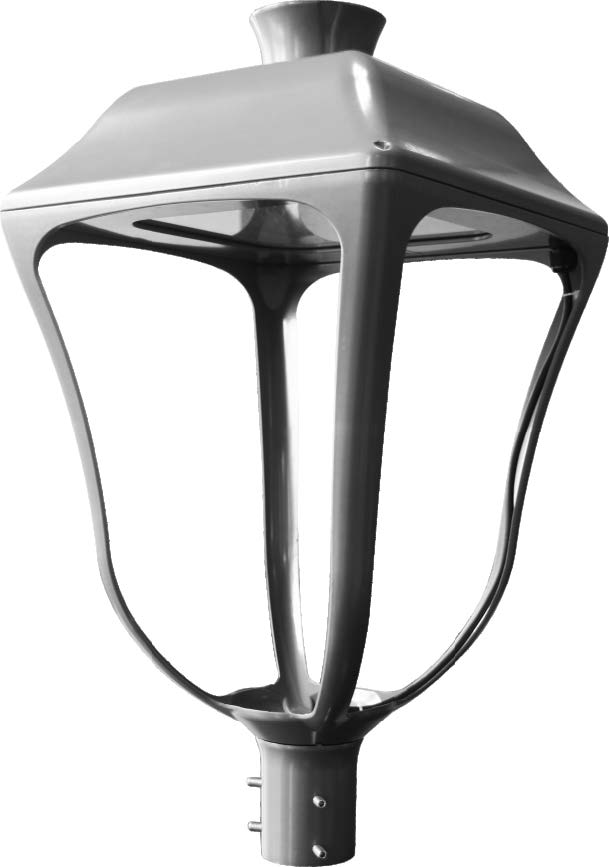

G08 Series
LED Garden Light

G08 Series LED Garden Light

  • Die-casting aluminum housing, Aluminum sheet rotating cover.
  • Double photometric diffuser technology, toughened glass, Sealed lamp housing.
  • Special circuit design, single LED’s damage won’t affect others’ normal work.
  • Tool-less open for easy installation, replacement and maintenance.
    Power-off protection make the Power automatically be off when fixture be opened.
  • Smooth body would greatly diminish dust accumulation and bird droppings heap up.
  • Breather ensures air balance inside and outside of the lamp
  • High Lumen output up to 150lm/w with high quality LED chips
  • Post Top Mounted, Pendant Mounted, Side Entry Mounted, and Suspended Mounted for optional.
  • Multiple lighting control options are available, e.g. DALI, 1-10V, photocell.
  • Low energy consumption,Wide power range: 40W~120W.
  • More light distribution leds type adapted to various applications
  • No light pollution: ULOR 0 % in flat glass version
  • Surge protection 10kV
  • Elegant and comfortable solution for creating ambiance

Color Options

Color Option

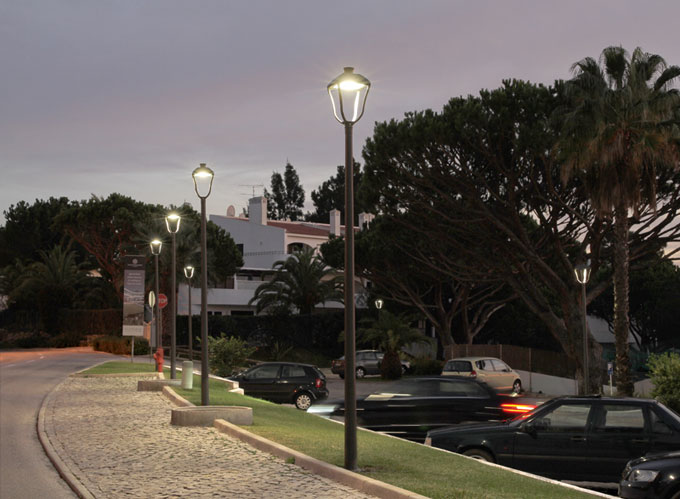

Application

Garden,Municipal road, street, Public Park, parking lot, etc.

Technical Characteristics

Model No.PowerEfficacyLumen OutputCCTIP IKLed SourceDriverLifespan
LS-G08-60D60W130LM/W7800LM3000K-6500KIP67,IK09Philips/CreeMeanwell/Inventroincs/Custom Brand8 years
LS-G08-80D80W130LM/W10400LM3000K-6500KIP67,IK09Philips/CreeMeanwell/Inventroincs/Custom Brand8 years
LS-G08-120D120W130LM/W15600LM3000K-6500KIP67,IK09Philips/CreeMeanwell/Inventroincs/Custom Brand8 years
