K180 Series
LED Street Light

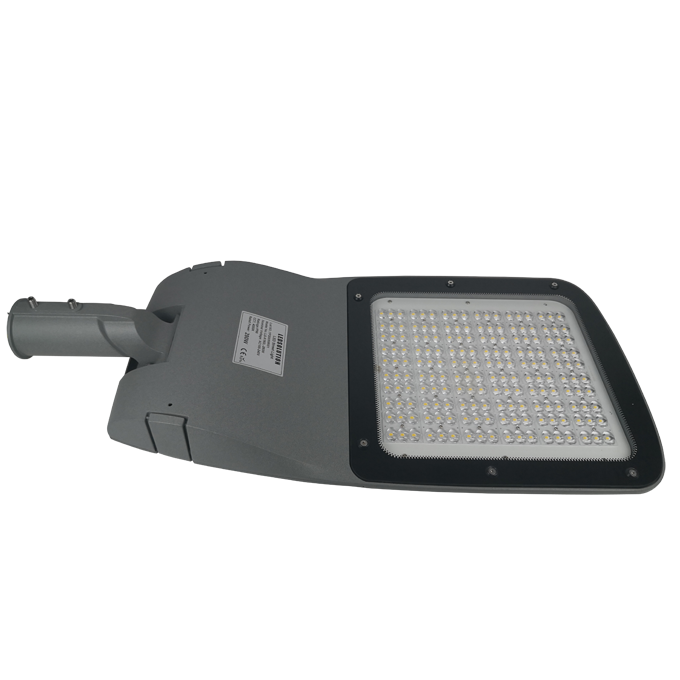

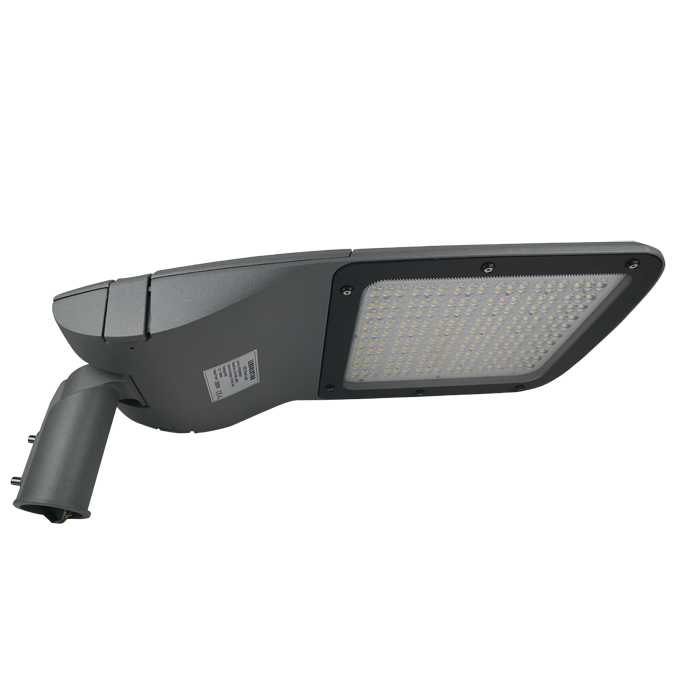

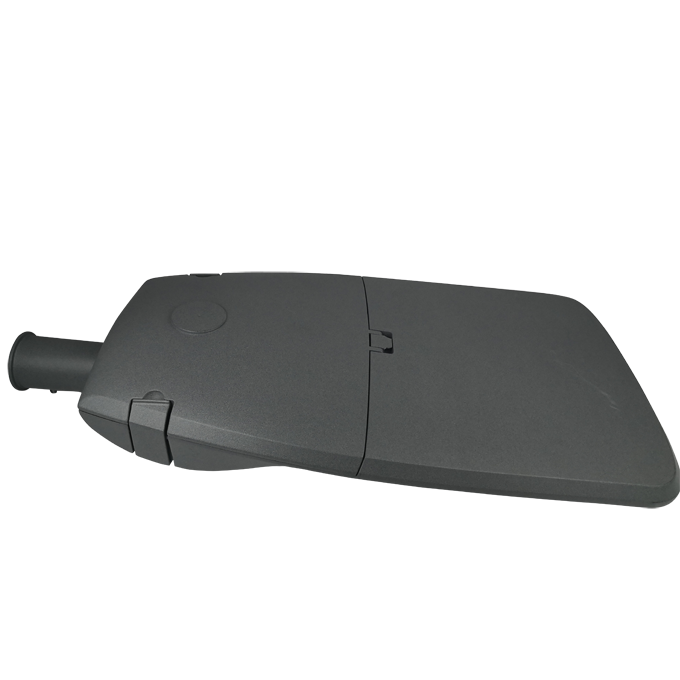

K180 Series LED Street Light

  • Cree/ Osram/ Philips-Lumileds and Samsung led chips options, flip chip technology, single unit’s damage won’t affect others’ normal work;
  • Easy to change the driver and led modules; class I, class II driver with dimmer optional, 0-10v, PWM, Dali
  • Designed to last at least 100,000 hours at L80;
  • Multiple lighting distributions available, fit for different road and standard;
  • Standard color temperatures: 3000K, 4000K, 6500K; minimum 80 CRI
  • IK09 and IP67 modules: highest waterproof level, hot-pluggable, easy for installation and replacement;
  • Multiple housing colors: black, white, grey;
  • CE,CB,ENEC Certification;
  • Photocell led road luminaires,tool-free led street lamp;
  • Adjustable angle design;
  • Power automactically switch off when opening
  • 8-year limited warranty;

Color Options

Color Option

Application

Municipal road, street, Public Park, parking lot,urban lights,Highway roads etc.

Technical Characteristics

Model No.WattageLed QtyLumenProduct sizeIP IKLed BrandDriver BrandOptionWarranty
LS-K180S-4040W16pcs5600lm633*245*149mm



IP67,IK08



Philips/
Cree/
Osram



Meanwell/
Inventroincs/
Philips/
Osram



SPD/
7pin base/
breaker



8 years

LS-K180S-6060W24pcs8400lm633*245*149mm
LS-K180S-8080W24pcs11200lm633*245*149mm
LS-K180M-100100W48pcs14000lm740*344*149mm
LS-K180M-150150W64pcs21000lm740*245*149mm
LS-K180M-180180W80pcs25200lm740*245*149mm
LS-K180L-200200W80pcs16000lm833*373*149mm
LS-K180L-250250W96pcs45000lm833*373*149mm
LS-K180L-280280W112pcs39200lm833*373*149mm
