BT Series
SOLAR LED Street Light

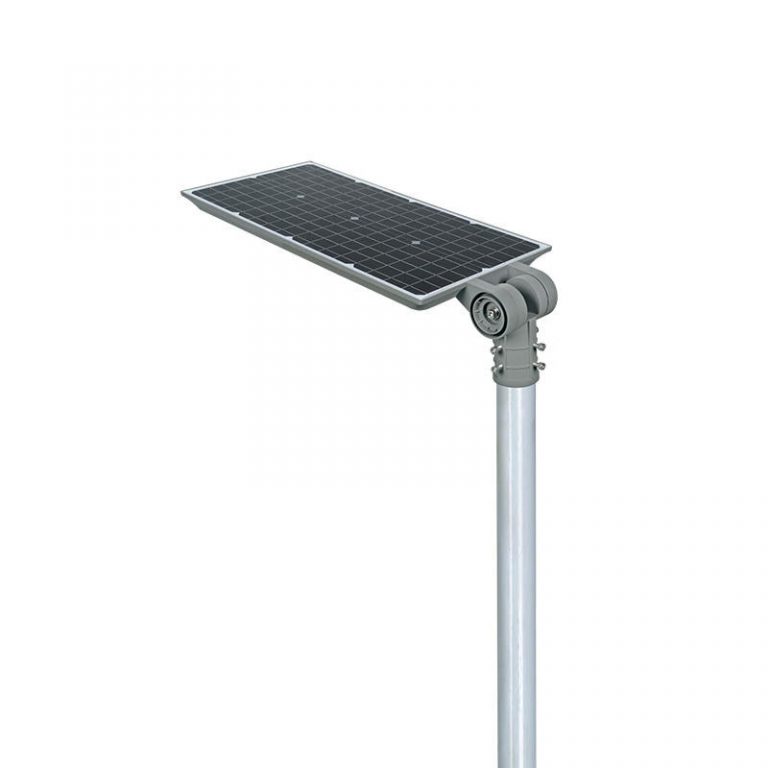

BT Series Solar LED Street Light

  • Integrated design, small size, low transportation cost; simple installation, one-button intelligent switch, easy to use; all parts can be easily replaced, saving cost.
  • Intelligent controller, intelligent power automatic adjustment function matches PIR motion infrared sensor to ensure effective illumination brightness and endurance time.
  • With IR infrared remote control function, it is easy to realize the working mode (induction mode, time control mode, mixed mode) conversion; users can choose the optimal working mode according to different purposes and lighting conditions.
  • Professional waterproof design, waterproof rating IP65.
  • It adopts special waterproof plug-in connector, color proof design, reverse protection, missed connection, misconnection and other protection functions.
  • Support a variety of lamp arms to meet different latitude areas and different forms of lamp installation requirements.
  • Wind resistance rating: 41.5 m / s.

Color Options

Color Option

Application

Municipal road, street, Public Park, parking lot, etc.

Technical Characteristics

Model No.LS-BT-740LS-BT-760LS-BT-7100LS-BT-7200
LED watt40W60W100W200W
Solar panel29W16V Mono36W16V Mono48W16V Mono180W16.5V Mono
BatteryLiFePO4 12.8V 18AHLiFePO4 12.8V 24AHLiFePO4 12.8V 42AHLiFePO4 12.8V 108AH
LED brandBridgeLux/Philips/Osram
 Lumen140lm/W
Lighting Angel140*70°
CCT3000K-6500K
Lifetime50000H
Working Temp一20℃~十60℃
IP RatingIP67
Motion sensoirDetection angle120°,Distance 7-12m
Working modeMotion mode/Timer control/Mixed mode
Charging time6-8hours
Discharging time10-12hours per day,3-5rainy days
Install height3-5m5-7m7-9m9-12m
MaterialDie-casting Aluminum Alloy

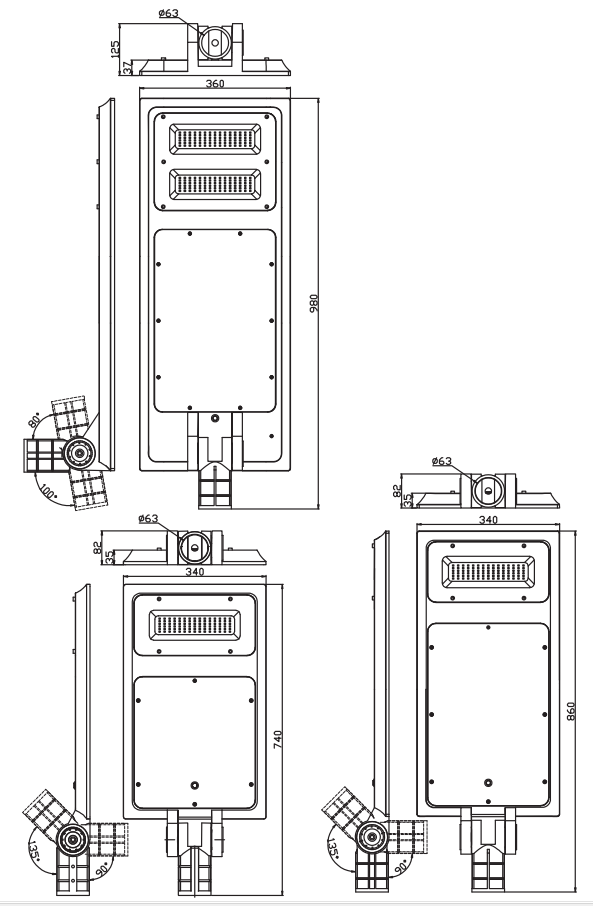

Product size740*340*82mm860*340*82mm980*360*125mm1550*534*167mm
G. wt/Carton8.5KG9.3KG14KG39KG
Package Size750*350*100mm880*350*110mm990*370*160mm1625*605*250mm
CertificateCE/ROHS/TUV/IP67
