DC Series
Solar LED Street Light

DC series smart MPPT CE Waterproof 120W adjustable Motion Sensor Remote Control Integrated lithium battery Solar led Street Light,all in one Solar Street Light,LiFePO4 solar lamp,Solar Garden Light,led urban lights,led road luminaires,led street lamp,five years warranty

DC Solar LED Street Light

  • Integrated design, small size, low transportation cost; simple installation, one-button intelligent switch, easy to use; all parts can be easily replaced, saving cost.
  • Intelligent controller, intelligent power automatic adjustment function matches PIR motion infrared sensor to ensure effective illumination brightness and endurance time.
  • With IR infrared remote control function, it is easy to realize the working mode (induction mode, time control mode, mixed mode) conversion; users can choose the optimal working mode according to different purposes and lighting conditions.
  • Professional waterproof design, waterproof rating IP65.
  • It adopts special waterproof plug-in connector, color proof design, reverse protection, missed connection, misconnection and other protection functions.
  • Support a variety of lamp arms to meet different latitude areas and different forms of lamp installation requirements.
  • Wind resistance rating: 41.5 m / s.

Color Options

Color Option

Application

Municipal road, street, Public Park, parking lot, etc.

Technical Characteristics

Model No.LS-DC-840LS-DC-860LS-DC-8120LS-DC-8180
LED watt40W60W120W180W
Solar panel26W18V Mono45W18V Mono55W18V Mono86W18V Mono
BatteryLiFePO4 12.8V 18AHLiFePO4 12.8V 24AHLiFePO4 12.8V 36AHLiFePO4 12.8V 42AH
LED brandBridgeLux/Philips/Osram
 Lumen140lm/W
Lighting Angel140*70°
CCT3000K-6500K
Lifetime50000H
Working Temp一20℃~十60℃
IP RatingIP67
Motion sensoirDetection angle120°，Distance 7-12m
Working modeMotion mode/Timer control/Mixed mode
Charging time6-8hours
Discharging time10-12hours per day，3-5rainy days
Install height3-5m5-7m7-9m9-12m
MaterialDie-casting Aluminum Alloy

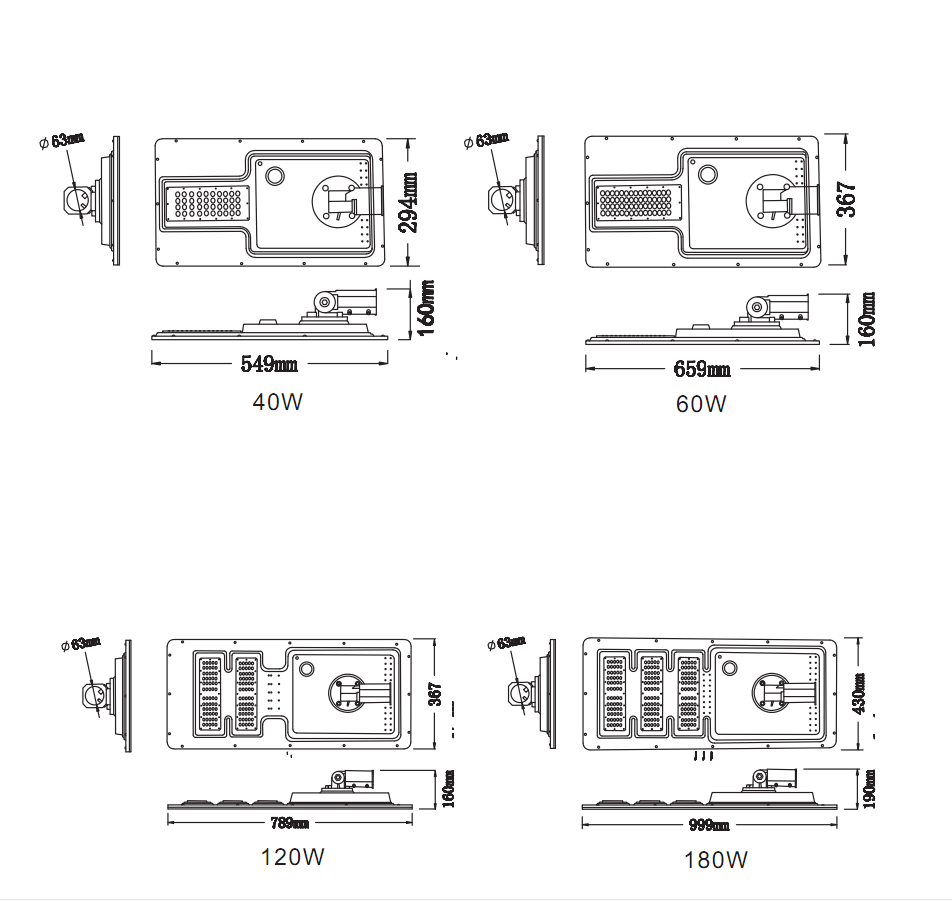

Product size549*294*160mm659*367*160mm789*367*160mm999*430*190mm
G. wt/Carton7.9KG10.9KG13.6KG17.5KG
Package Size600*210*350mm740*210*435mm850*210*435mm1080*230*485mm
CertificateCE/ROHS/TUV/IP67
