G06 Series
LED Garden Light

G06 Series LED Garden Light

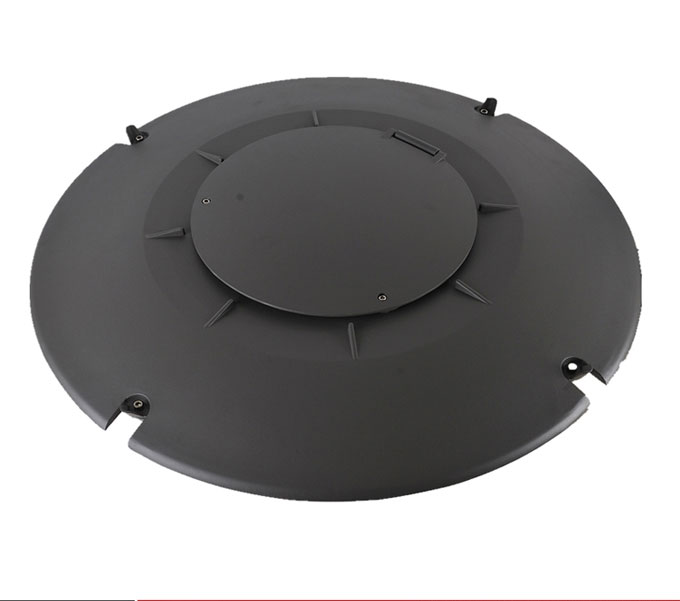

  • Die-casting aluminum housing, Aluminum sheet rotating cover.
  • Double photometric diffuser technology, toughened glass, Sealed lamp housing.
  • Special circuit design, single LED’s damage won’t affect others’ normal work.

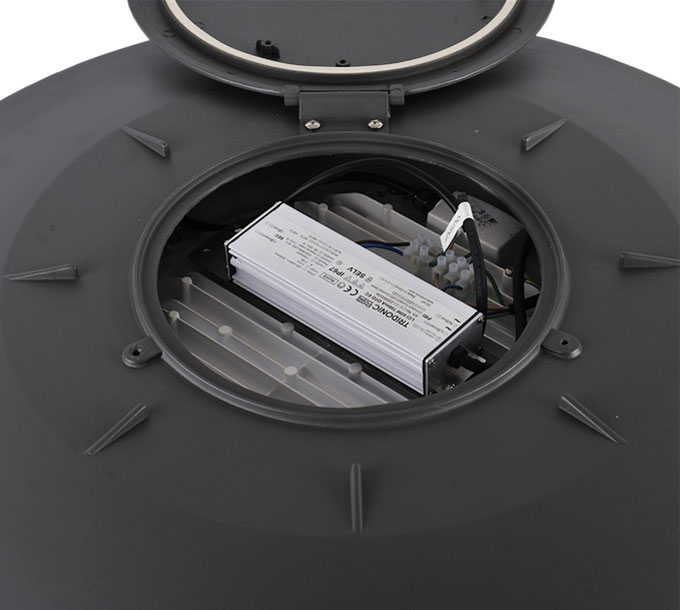

  • Tool-less open for easy installation, replacement and maintenance.
    Power-off protection make the Power automatically be off when fixture be opened.
  • Smooth body would greatly diminish dust accumulation and bird droppings heap up.
  • Breather ensures air balance inside and outside of the lamp

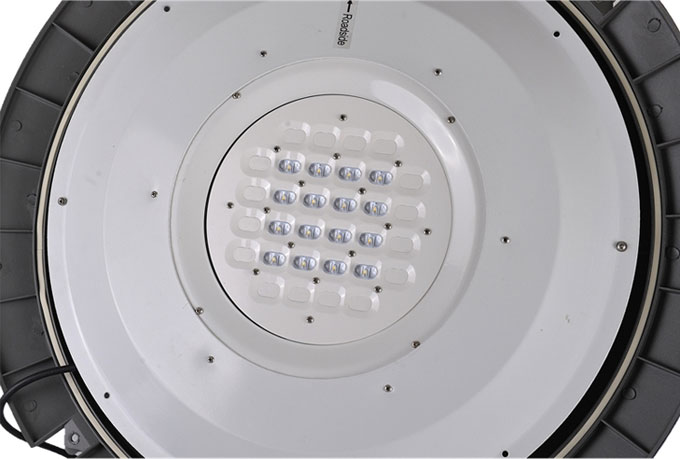

  • High Lumen output up to 150lm/w with high quality LED chips
  • Post Top Mounted, Pendant Mounted, Side Entry Mounted, and Suspended Mounted for optional.
  • Multiple lighting control options are available, e.g. DALI, 1-10V, photocell.
  • Low energy consumption,Wide power range: 40W~120W.
  • More light distribution leds type adapted to various applications
  • No light pollution: ULOR 0 % in flat glass version
  • Surge protection 10kV
  • Elegant and comfortable solution for creating ambiance

Color Options

Color Option

Application

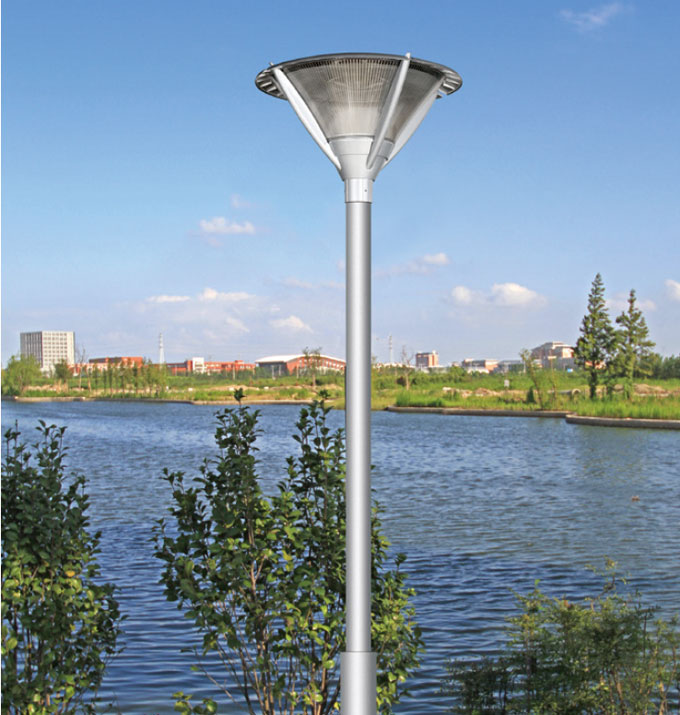

Garden,Municipal road, street, Public Park, parking lot, etc.

Technical Characteristics

Model No.PowerEfficacyLumen OutputCCTIP IKLed SourceDriverLifespan
LS-G06-4040W110LM/W4400LM3000K-6500KIP66,IK08Philips/CreeMeanwell/Inventroincs/Custom Brand8 years
LS-G06-6060W110LM/W6600LM3000K-6500KIP66,IK08Philips/CreeMeanwell/Inventroincs/Custom Brand8 years
LS-G06-8080W110LM/W8800LM3000K-6500KIP66,IK08Philips/CreeMeanwell/Inventroincs/Custom Brand8 years
LS-G06-120120W110LM/W13200LM3000K-6500KIP66,IK08Philips/CreeMeanwell/Inventroincs/Custom Brand8 years
