K130 Series
LED Street Light

K130 CE CB ENEC IP67 IK09 60W 140LM/W adjustable photocell dia-cast aluminum photocell dimmable led street light,led urban lights,led road luminaires,led street lamp,eight years warranty,tool-free maintenance,class II.
K130 CE CB ENEC IP67 IK09 80W 140LM/W adjustable photocell dia-cast aluminum photocell dimmable led street light,led urban lights,led road luminaires,led street lamp,eight years warranty,tool-free maintenance,class II.
K130 CE CB ENEC IP67 IK09 100W 140LM/W adjustable photocell dia-cast aluminum photocell dimmable led street light,led urban lights,led road luminaires,led street lamp,eight years warranty,tool-free maintenance,class II.
K130 CE CB ENEC IP67 IK09 150W 140LM/W adjustable photocell dia-cast aluminum photocell dimmable led street light,led urban lights,led road luminaires,led street lamp,eight years warranty,tool-free maintenance,class II.
Previous
Next

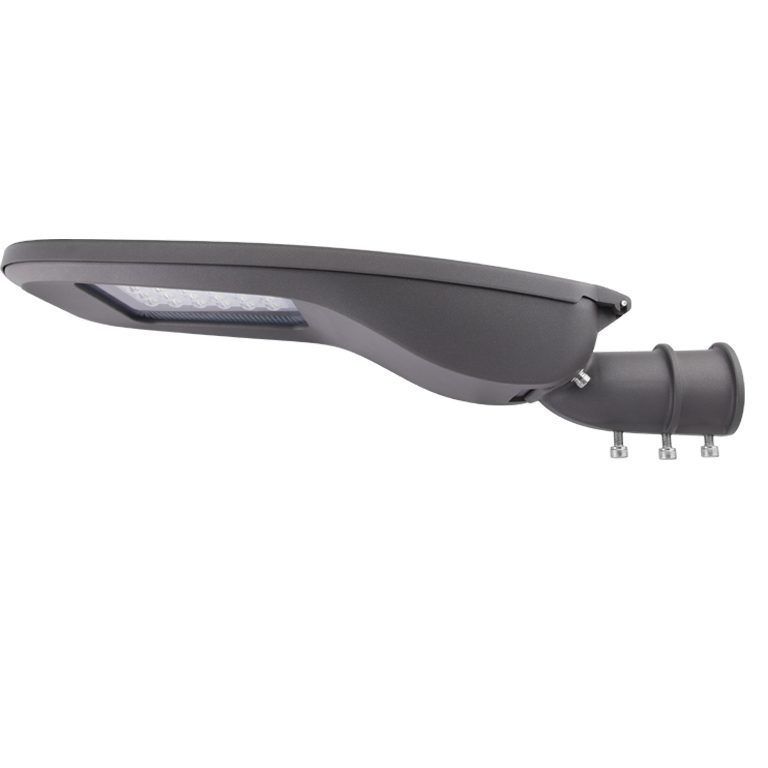

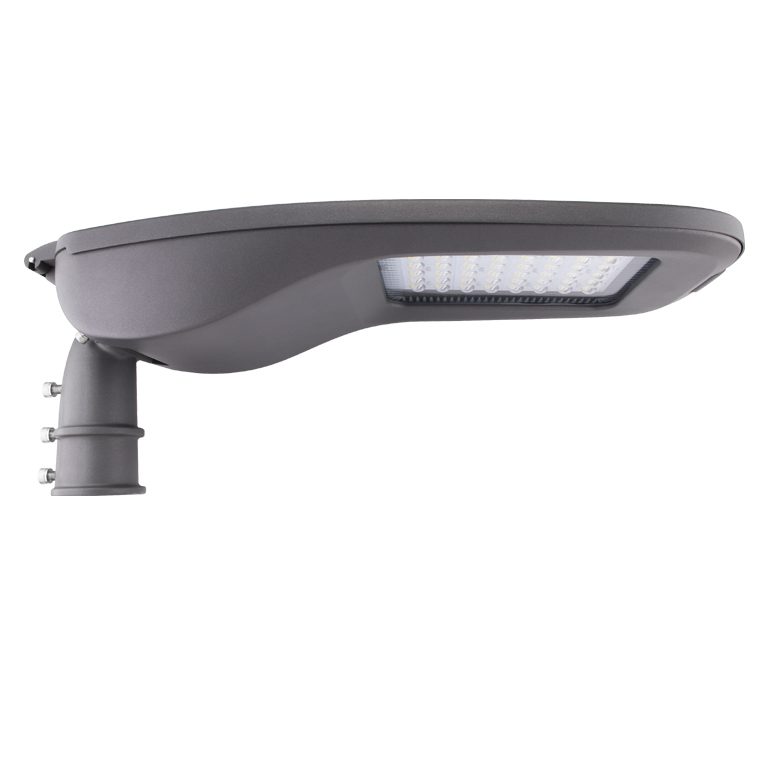

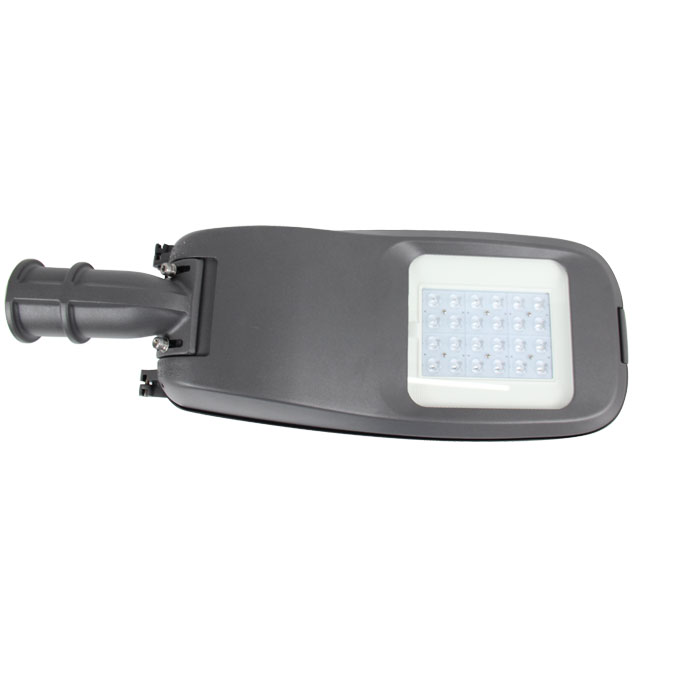

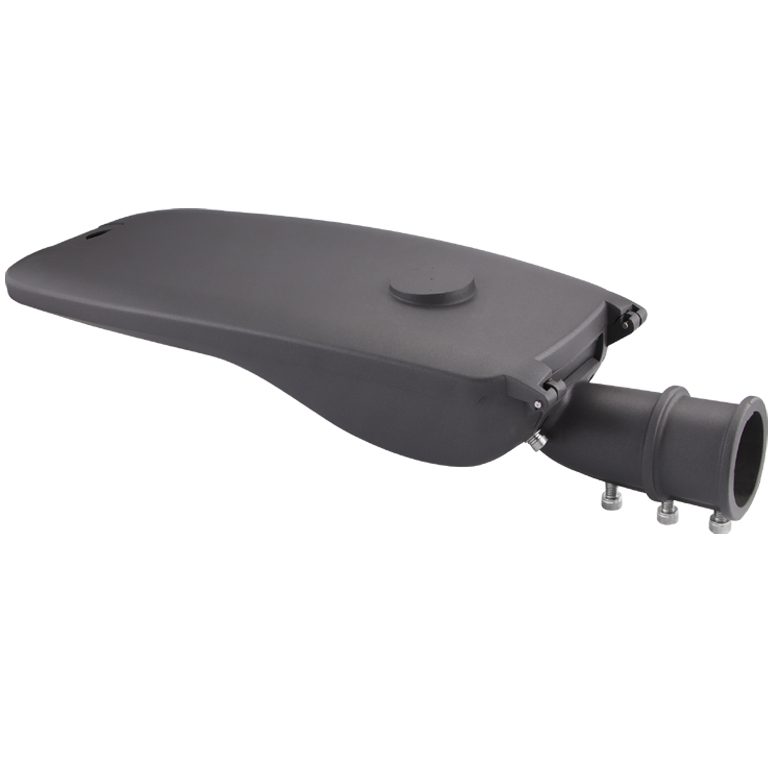

K130 Series LED Street Light

  • Cree/ Osram/ Philips-Lumileds and Samsung led chips options, flip chip technology, single unit’s damage won’t affect others’ normal work;
  • Easy to change the driver and led modules; class I, class II driver with dimmer optional, 0-10v, PWM, Dali
  • Designed to last at least 100,000 hours at L80;
  • Multiple lighting distributions available, fit for different road and standard;
  • Standard color temperatures: 3000K, 4000K, 6500K; minimum 80 CRI
  • IK09 and IP67 modules: highest waterproof level, hot-pluggable, easy for installation and replacement;
  • Multiple housing colors: black, white, grey;
  • CE,CB,ENEC Certification;
  • Photocell led road luminaires,tool-free led street lamp;
  • Adjustable angle design;
  • Power automactically switch off when opening
  • 5-year limited warranty;

Color Options

Color Option

Application

Municipal road, street, Public Park, parking lot,urban lights,Highway roads etc.

Technical Characteristics

Model No.WattageLed QtyLumenProduct sizeIP IKLed BrandDriver BrandOptionWarranty
LS-K130S-4040W16pcs5600lm668*249*145mm







IP65,IK08







Philips/
Cree/
Osram







Meanwell/
Inventroincs/
Philips/
Moso







SPD/
7pin base/
breaker







5 years

LS-K130S-5050W24pcs7000lm668*249*145mm
LS-K130S-6060W24pcs8400lm668*249*145mm
LS-K130M-8080W36pcs11200lm723*299*142mm
LS-K130M-100100W48pcs14000lm723*299*142mm
LS-K130M-120120W48pcs16800lm723*299*142mm
LS-K130L-120120W48pcs16800lm804*347*144mm
LS-K130L-150150W64pcs21000lm804*347*144mm
LS-K130L-200200W80pcs28000lm804*347*144mm
LED Street Light, Solar LED Street Light,LED Lighting Solution,LEDSOLUTION
