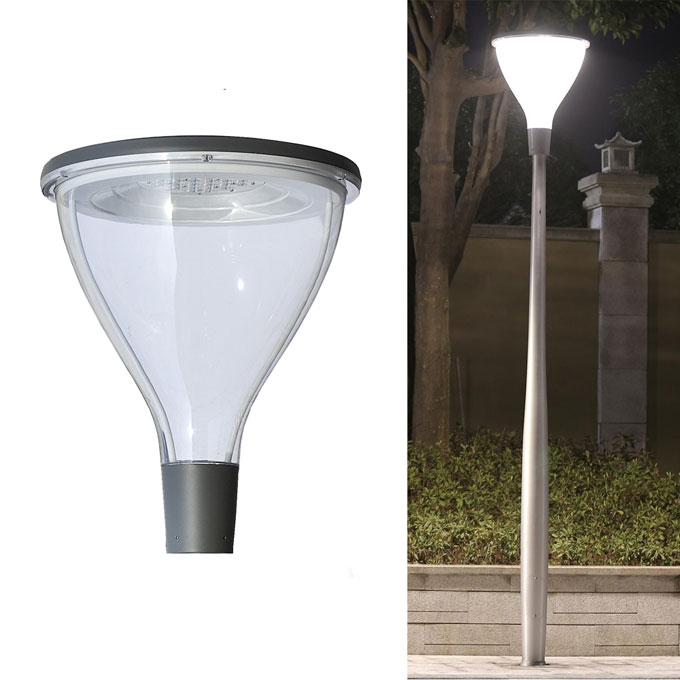

D09 Series LED Garden Light
- Die-casting aluminum housing, Aluminum sheet rotating cover.

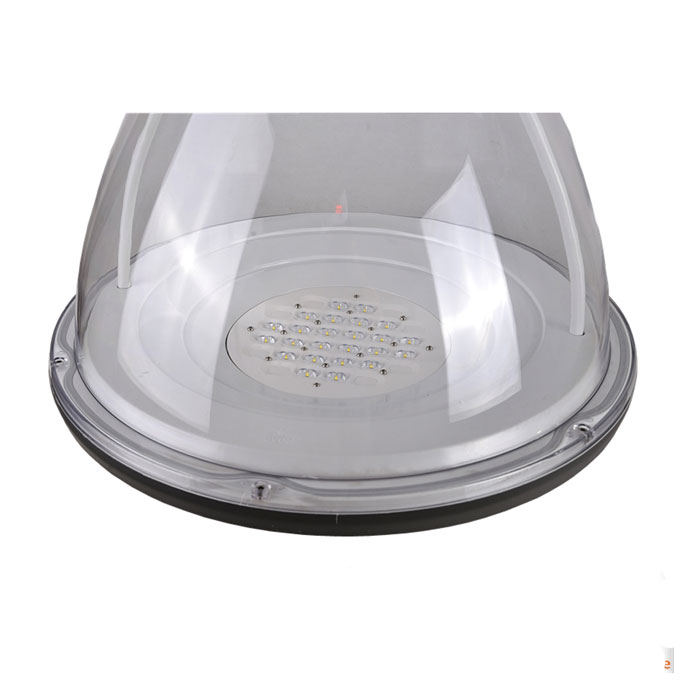

- Double photometric diffuser technology, toughened glass, Sealed lamp housing.

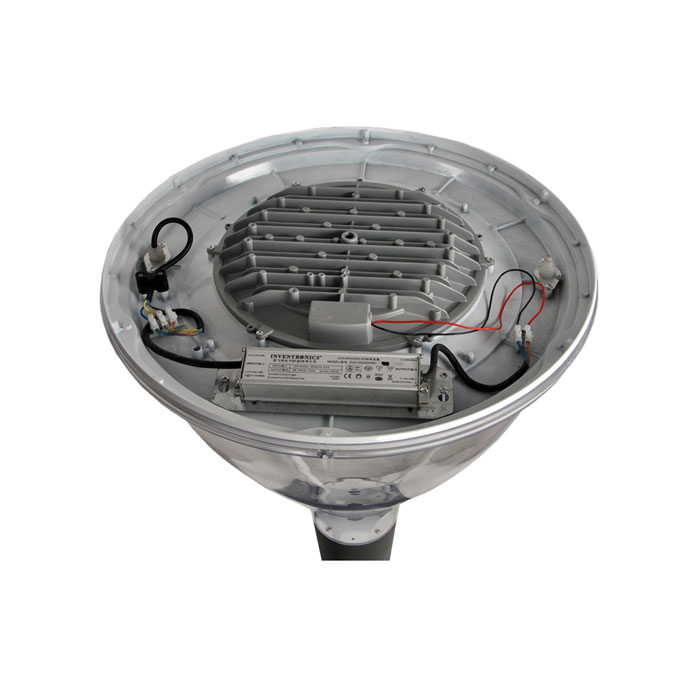

- Special circuit design, single LED’s damage won’t affect others’ normal work.
- Tool-less open for easy installation, replacement and maintenance.
Power-off protection make the Power automatically be off when fixture be opened.
- Smooth body would greatly diminish dust accumulation and bird droppings heap up.
- Breather ensures air balance inside and outside of the lamp
- High Lumen output up to 150lm/w with high quality LED chips
- Post Top Mounted, Pendant Mounted, Side Entry Mounted, and Suspended Mounted for optional.
- Multiple lighting control options are available, e.g. DALI, 1-10V, photocell.
- Low energy consumption,Wide power range: 40W~120W.
- More light distribution leds type adapted to various applications
- No light pollution: ULOR 0 % in flat glass version
- Surge protection 10kV
- Elegant and comfortable solution for creating ambiance

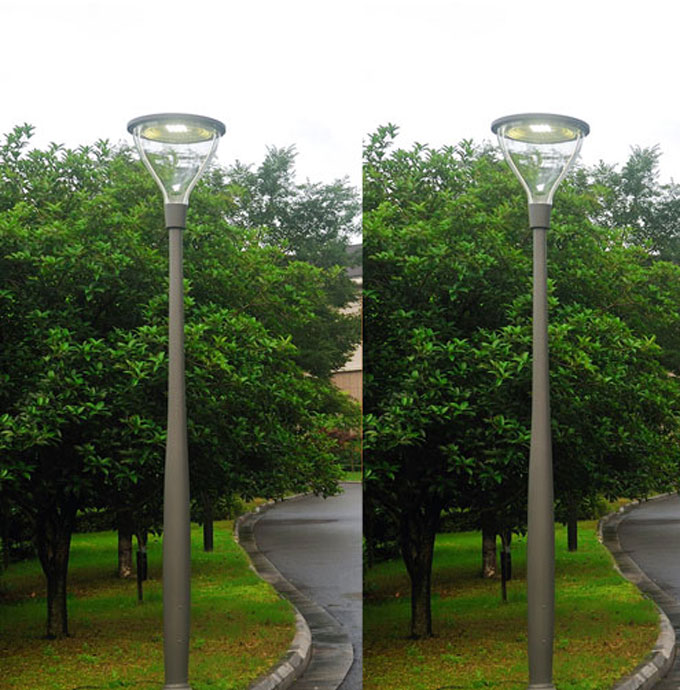

Garden,Municipal road, street, Public Park, parking lot, etc.
|Model No.||Power||Eﬀicacy||Lumen Output||CCT||IP IK||Led Source||Driver||Lifespan|
|LS-D09-40||40W||110LM/W||4400LM||3000K-6500K||IP66,IK08||Philips/Cree||Meanwell/Inventroincs/Custom Brand||8 years|
|LS-D09-50||50W||110LM/W||5500LM||3000K-6500K||IP66,IK08||Philips/Cree||Meanwell/Inventroincs/Custom Brand||8 years|
|LS-D09-60||60W||110LM/W||6600LM||3000K-6500K||IP66,IK08||Philips/Cree||Meanwell/Inventroincs/Custom Brand||8 years|
|LS-D09-90||90W||110LM/W||9900LM||3000K-6500K||IP66,IK08||Philips/Cree||Meanwell/Inventroincs/Custom Brand||8 years|
