Beit Series
LED Street Light

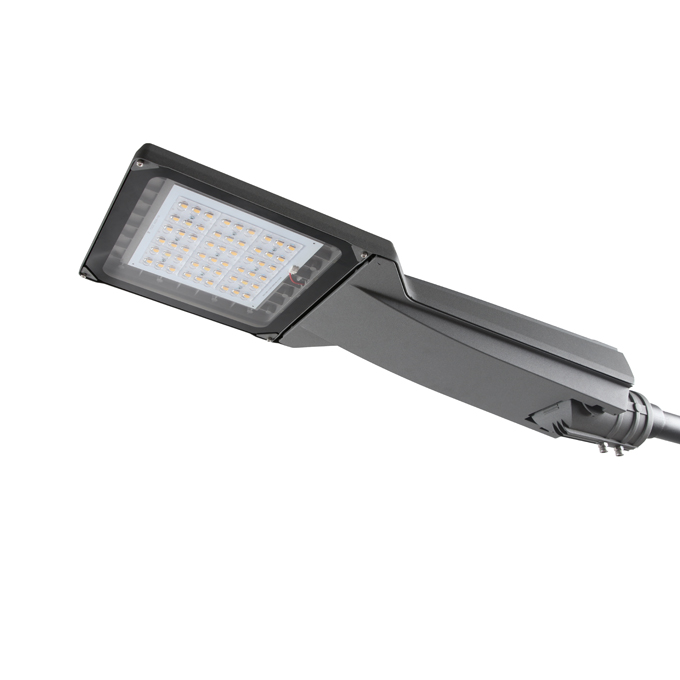

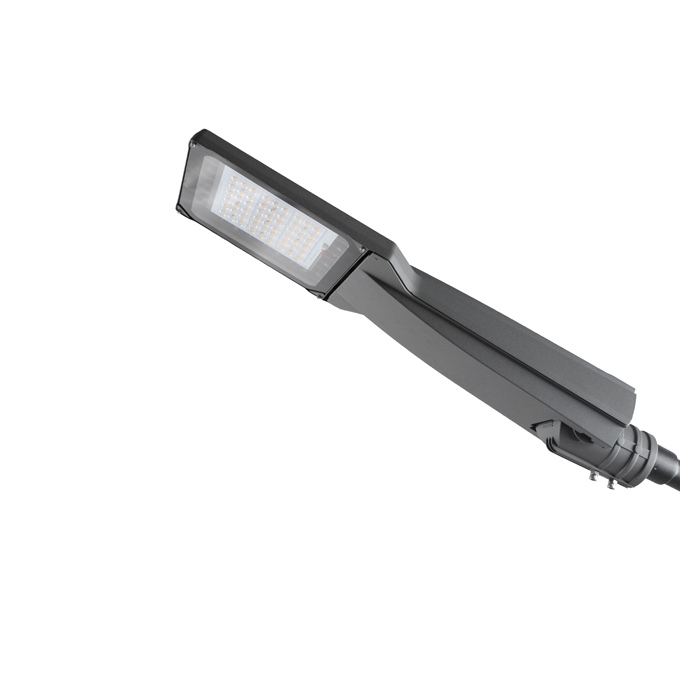

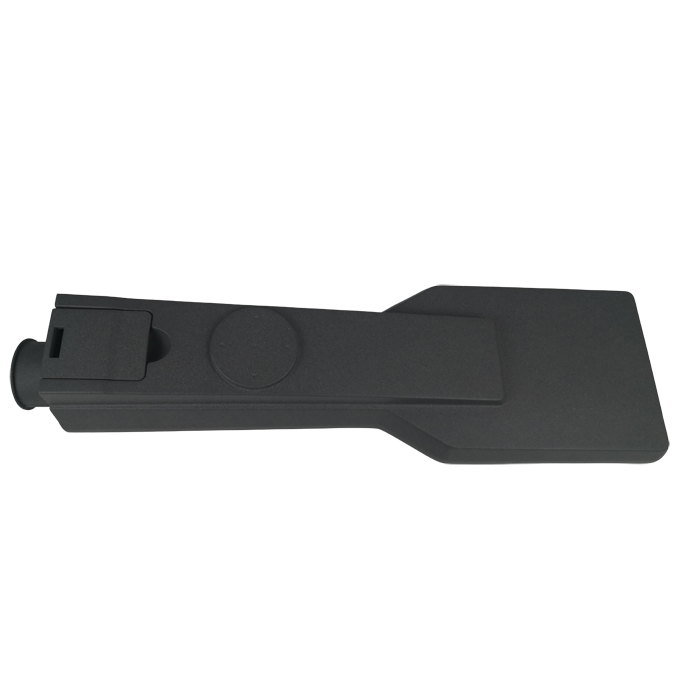

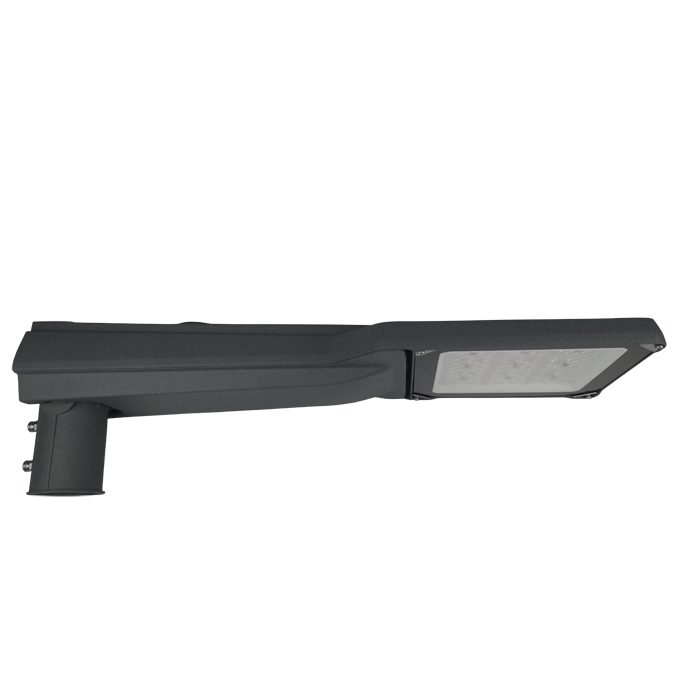

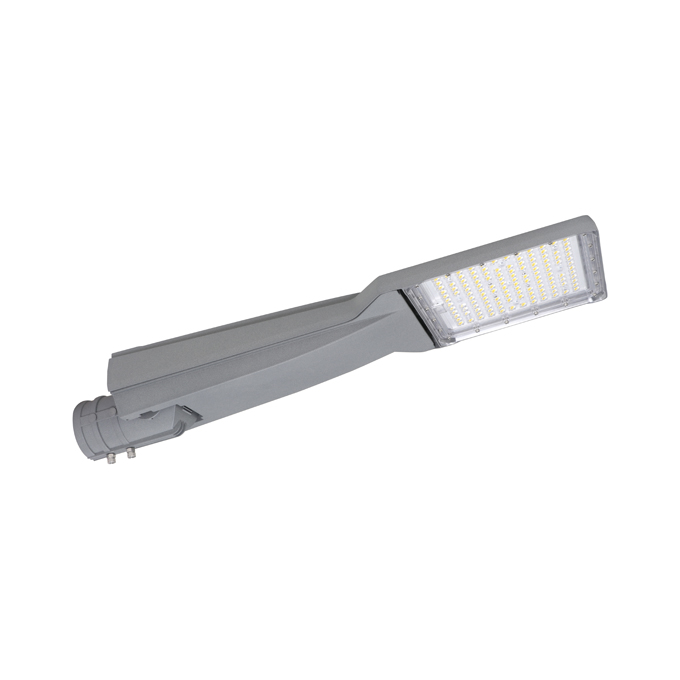

Beit Series LED Street Light

  • Cree/ Osram/ Philips-Lumileds and Samsung led chips options, flip chip technology, single unit’s damage won’t affect others’ normal work;
  • Easy to change the driver and led modules; class I, class II driver with dimmer optional, 0-10v, PWM, Dali
  • Designed to last at least 100,000 hours at L80;
  • Multiple lighting distributions available, fit for different road and standard;
  • Standard color temperatures: 3000K, 4000K, 6500K; minimum 80 CRI
  • IK09 and IP67 modules: highest waterproof level, hot-pluggable, easy for installation and replacement;
  • Multiple housing colors: black, white, grey;
  • CE,CB,ENEC Certification;
  • Photocell led road luminaires,tool-free led street lamp;
  • Adjustable angle design;
  • Power automactically switch off when opening
  • 8-year limited warranty;

Color Options

Color Option

Application

Municipal road, street, Public Park, parking lot,urban lights,Highway roads etc.

Technical Characteristics

Model No.WattageLed QtyLumenProduct sizeIP IKLed BrandDriver BrandOptionWarranty
LS-Beit-S4040W16pcs5600lm563.5*165.3*110mm

IP65,IK08

Philips/
Cree/
Osram

Meanwell/
Inventroincs/
Philips/
Moso

SPD/
7pin base/
breaker

8 years

LS-Beit-S5050W24pcs7000lm563.5*165.3*110mm
LS-Beit-S6060W24pcs8400lm563.5*165.3*110mm
LS-Beit-M8080W36pcs11200lm651*216*111mm
LS-Beit-M100100W48pcs14000lm651*216*111mm
LS-Beit-M120120W48pcs16800lm651*216*111mm
LS-Beit-L120120W48pcs16800lm836*266*138mm
LS-Beit-L150150W64pcs21000lm836*266*138mm
LS-Beit-L180180W80pcs25200lm836*266*138mm
