K190 Series
LED Street Light

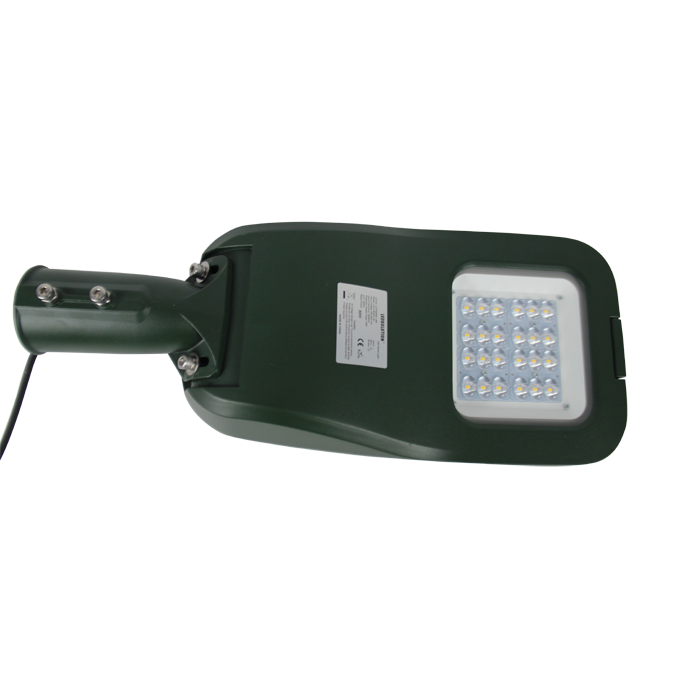

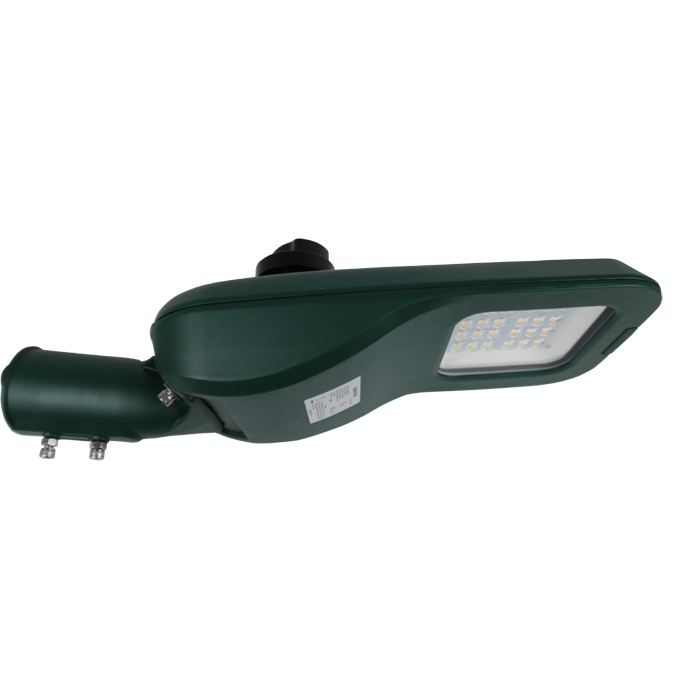

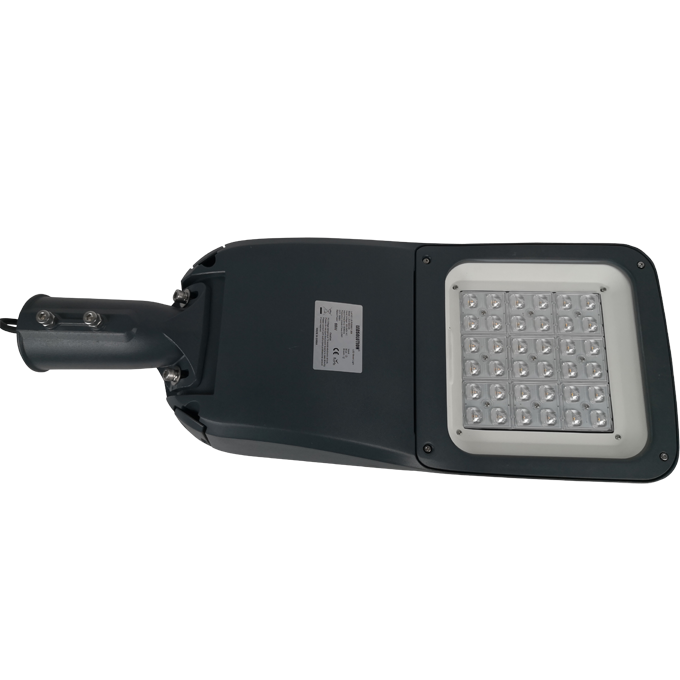

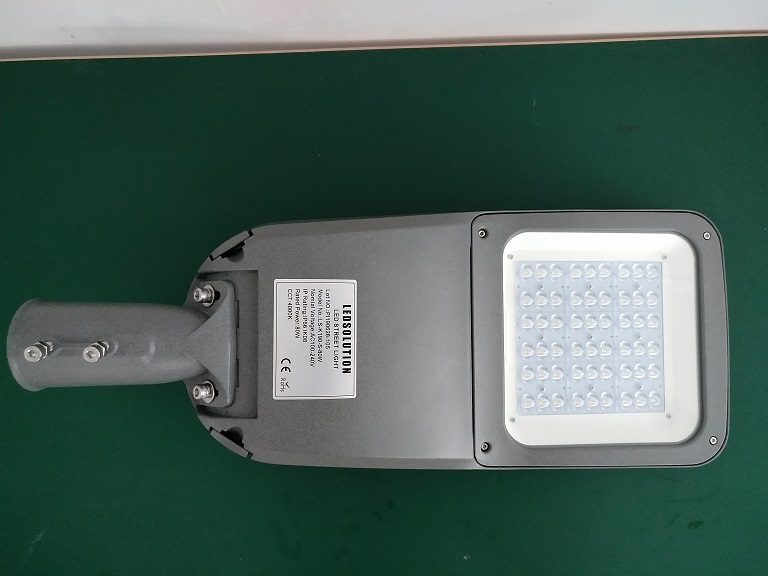

K190 Series LED Street Light

  • Cree/ Osram/ Philips-Lumileds and Samsung led chips options, flip chip technology, single unit’s damage won’t affect others’ normal work;
  • Easy to change the driver and led modules; class I, class II driver with dimmer optional, 0-10v, PWM, Dali
  • Designed to last at least 100,000 hours at L80;
  • Multiple lighting distributions available, fit for different road and standard;
  • Standard color temperatures: 3000K, 4000K, 6500K; minimum 80 CRI
  • IK09 and IP67 modules: highest waterproof level, hot-pluggable, easy for installation and replacement;
  • Multiple housing colors: black, white, grey;
  • CE,CB,ENEC Certification;
  • Photocell led road luminaires,tool-free led street lamp;
  • Adjustable angle design;
  • Power automactically switch off when opening
  • 8-year limited warranty;

Color Options

Color Option

Application

Municipal road, street, Public Park, parking lot,urban lights,Highway roads etc.

Technical Characteristics

Model No.WattageLed QtyLumenProduct sizeIP IKLed BrandDriver BrandOptionWarranty
LS-K190Mini-3030W16pcs5600lm305*223*131mm









IP67,IK10









Philips/
Cree/
Osram









Meanwell/
Inventroincs/
Philips/
Moso









SPD/
7pin base/
breaker









8 years

LS-K190Mini-4040W24pcs8400lm305*223*131mm
LS-K190Mini-5050W24pcs7000lm305*223*131mm
LS-K190S-5050W24pcs7000lm650*255*144mm
LS-K190S-6060W24pcs8400lm650*255*144mm
LS-K190S-7070W36pcs9800lm650*255*144mm
LS-K190M-8080W36pcs11200lm705*286*144mm
LS-K190M-120120W48pcs16800lm705*286*144mm
LS-K190M-150150W80pcs21000lm705*286*144mm
LS-K190L-180180W80pcs25200lm831*339*143mm
LS-K190L-200200W80pcs28000lm831*339*143mm
LS-K190L-220220W80pcs30800m831*339*143mm
