E18 Series
LED Street Light

Die-casting aluminum housing, Aluminum sheet rotating cover.
Double photometric diffuser technology, toughened glass, Sealed lamp housing.
Special circuit design, single LED’s damage won’t affect others’ normal work.
Tool-less open for easy installation, replacement and maintenance.
Power-off protection make the Power automatically be off when fixture be opened.
Smooth body would greatly diminish dust accumulation and bird droppings heap up.
Breather ensures air balance inside and outside of the lamp
High Lumen output up to 150lm/w with high quality LED chips

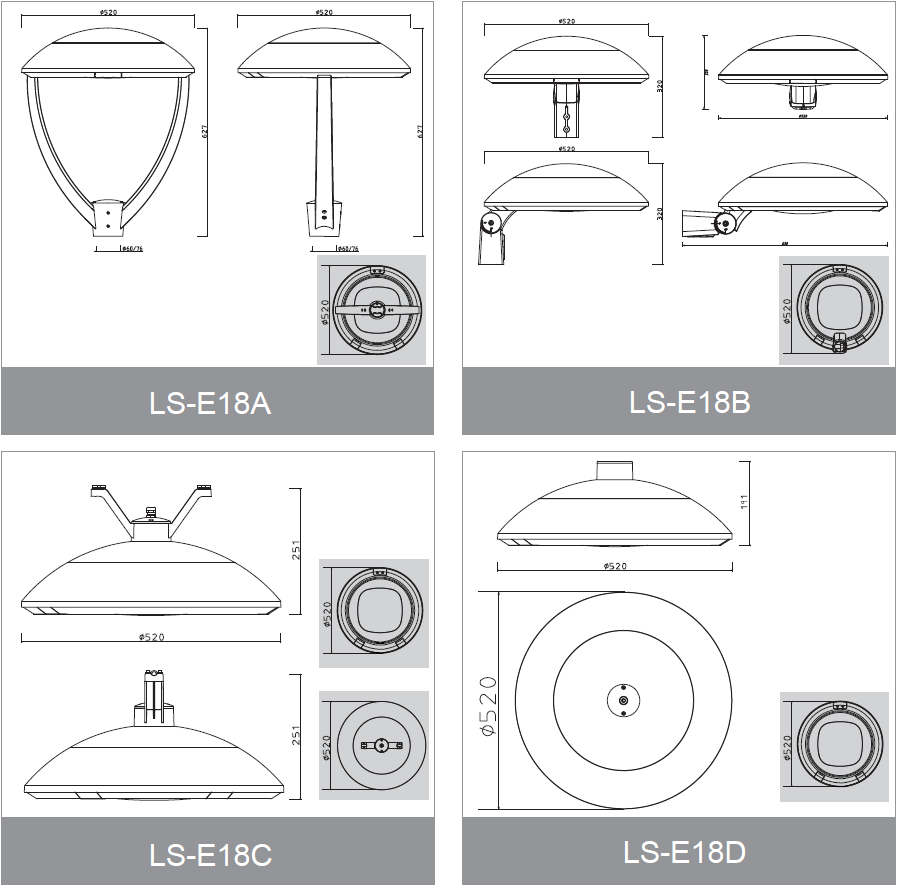

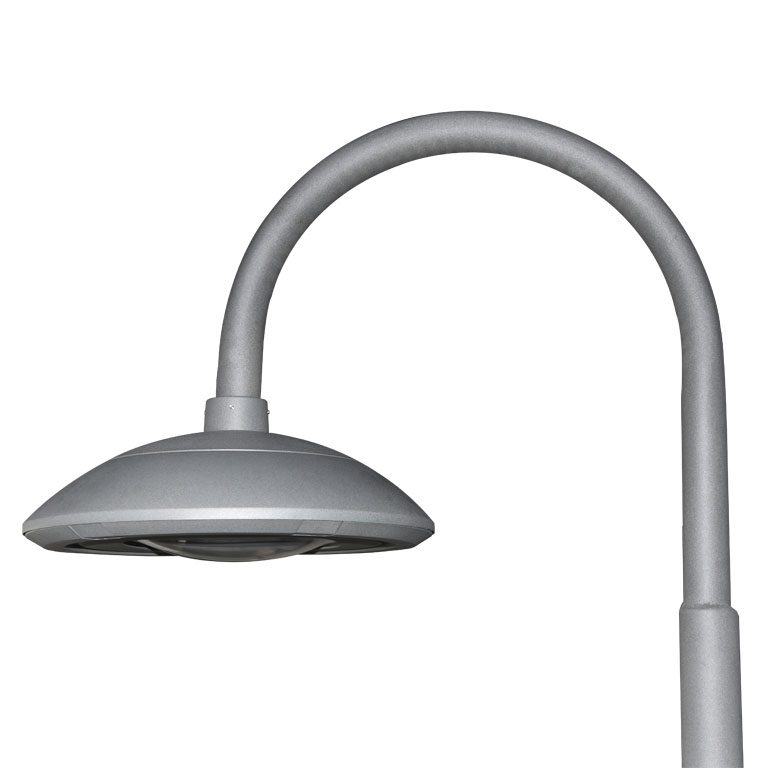

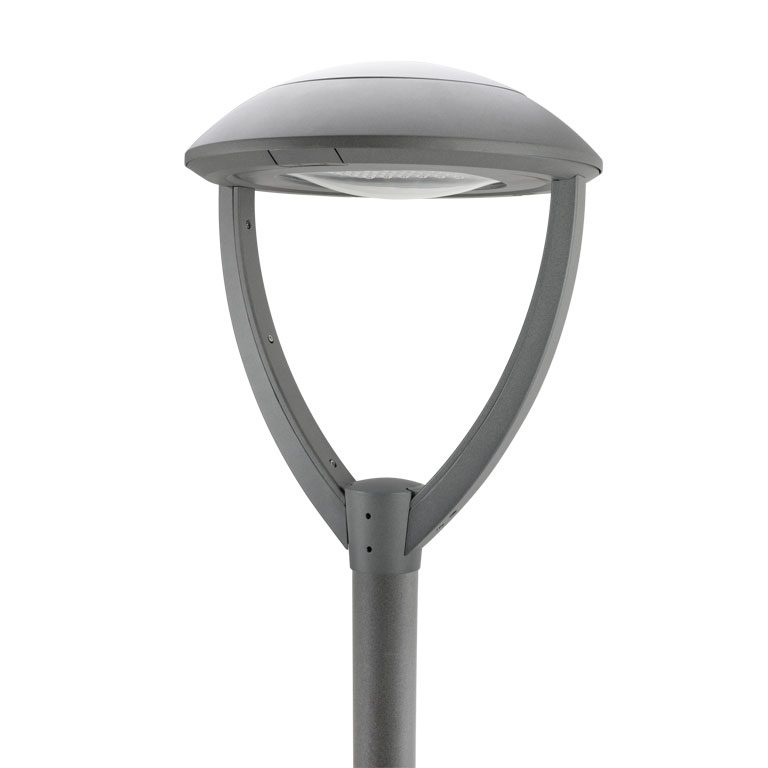

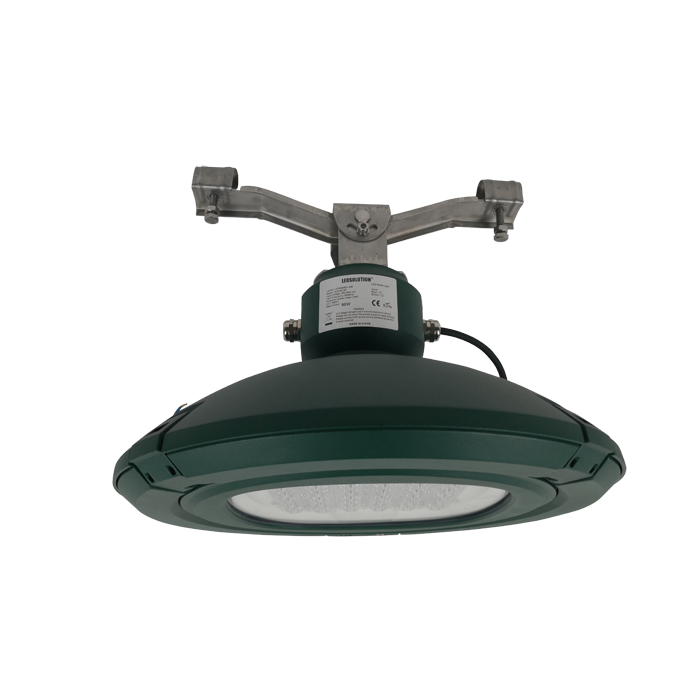

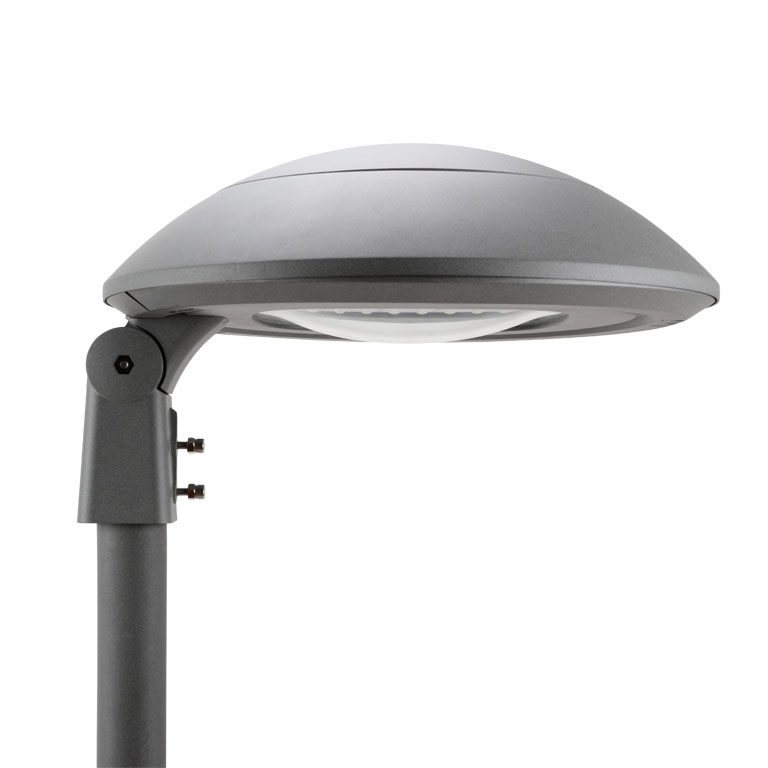

Post Top Mounted, Pendant Mounted, Side Entry Mounted, and Suspended Mounted for optional.
Multiple lighting control options are available, e.g. DALI, 1-10V, photocell.
Low energy consumption,Wide power range: 40W~120W.
More light distribution leds type adapted to various applications
No light pollution: ULOR 0 % in flat glass version
Surge protection 10kV
Elegant and comfortable solution for creating ambiance

Municipal road, street, Public Park, parking lot, etc.

Model No.	Power	Eﬀicacy	Lumen Output	LED QTY	CCT	IP IK	Led Source	Driver	Lifespan
LS-E18A/E18B/E18C/E18D	40W	130LM/W	5200LM	48pcs	3000K-6500K	IP66,IK08	Philips/Cree	Meanwell/Inventroincs/Osram/Custom Brand	8 years
LS-E18A/E18B/E18C/E18D	60W	130LM/W	7800LM	72pcs	3000K-6500K	IP66,IK08	Philips/Cree	Meanwell/Inventroincs/Osram/Custom Brand	8 years
LS-E18A/E18B/E18C/E18D	80W	130LM/W	10400LM	96pcs	3000K-6500K	IP66,IK08	Philips/Cree	Meanwell/Inventroincs/Osram/Custom Brand	8 years
LS-E18A/E18B/E18C/E18D	100W	130LM/W	13000LM	120pcs	3000K-6500K	IP66,IK08	Philips/Cree	Meanwell/Inventroincs/Osram/Custom Brand	8 years
LS-E18A/E18B/E18C/E18D	120W	130LM/W	15600LM	144pcs	3000K-6500K	IP66,IK08	Philips/Cree	Meanwell/Inventroincs/Osram/Custom Brand	8 years
