G02 Series
LED Garden Light

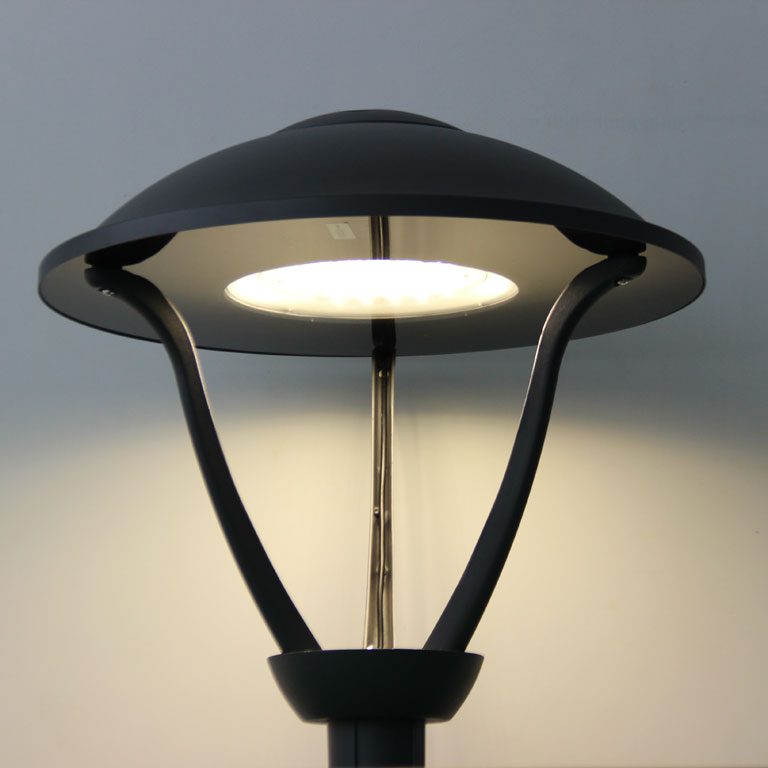

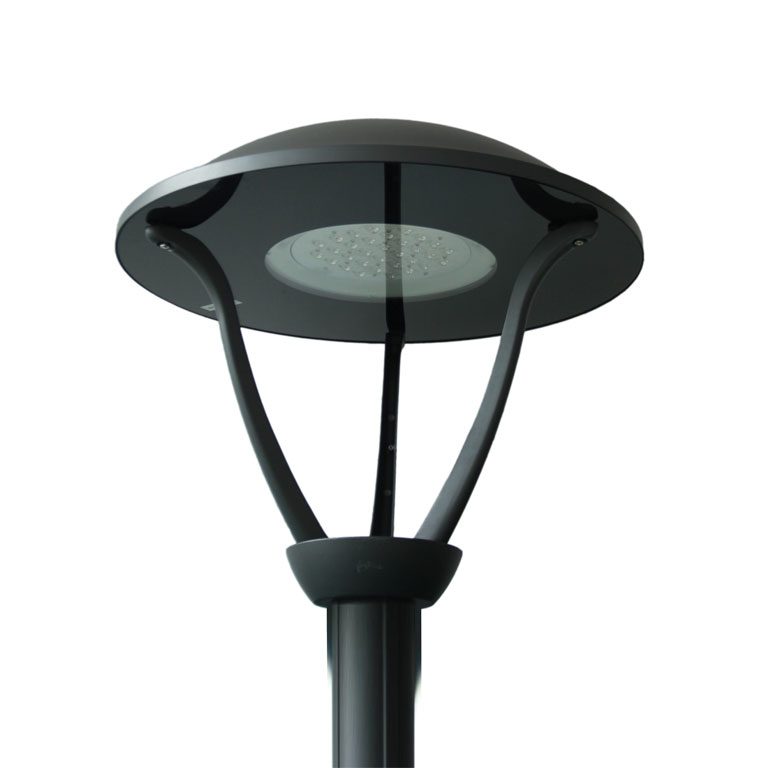

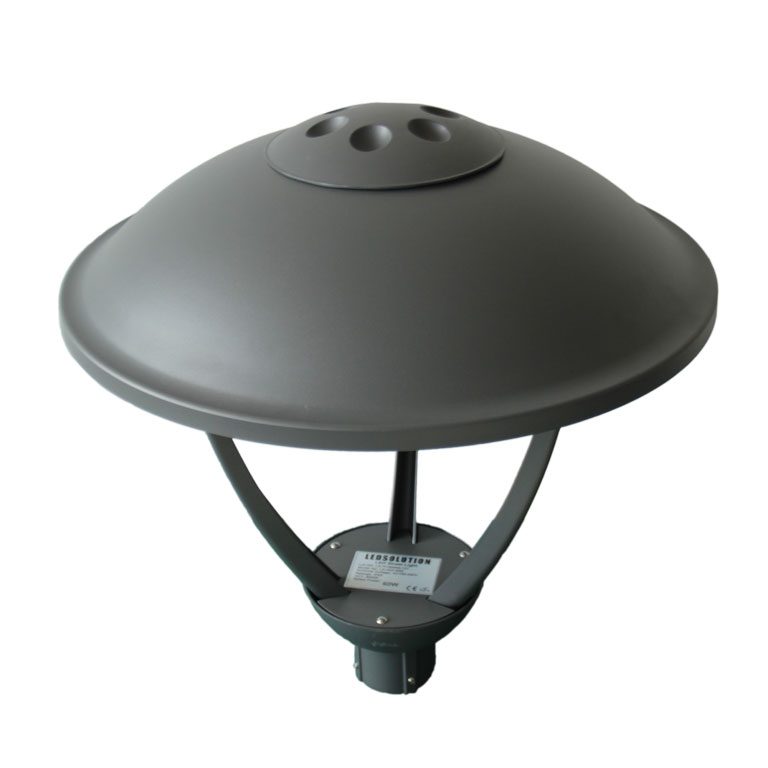

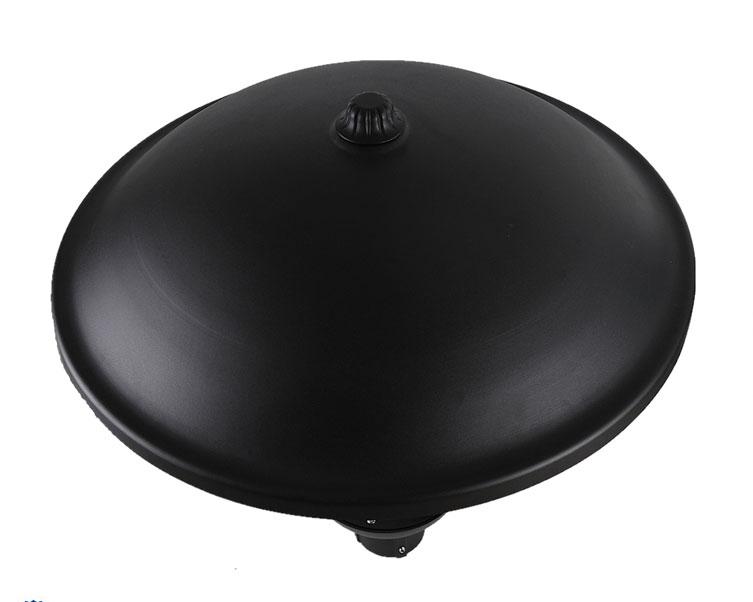

G02 Series LED Garden Light

  • Special circuit design, single LED’s damage won’t affect others’ normal work.
  • Tool-less open for easy installation, replacement and maintenance.
    Power-off protection make the Power automatically be off when fixture be opened.
  • Smooth body would greatly diminish dust accumulation and bird droppings heap up.
  • Breather ensures air balance inside and outside of the lamp
    High Lumen output up to 150lm/w with high quality LED chips
    Post Top Mounted, Pendant Mounted, Side Entry Mounted, and Suspended Mounted for optional.
  • Multiple lighting control options are available, e.g. DALI, 1-10V, photocell.
  • Wide power range: 40W~90W.

Color Options

Color Option

Application

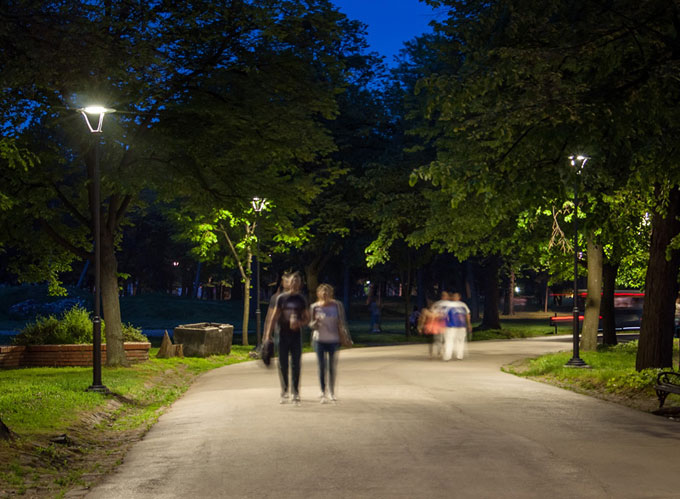

Garden,Municipal road, street, Public Park, parking lot, etc.

Technical Characteristics

Model No.PowerEfficacyLumen OutputCCTIP IKLed SourceDriverLifespan
LS-G02-40D40W130LM/W5200LM3000K-6500KIP66,IK08Philips/CreeMeanwell/Inventroincs/Custom Brand8 years
LS-G02-50D50W130LM/W6500LM3000K-6500KIP66,IK08Philips/CreeMeanwell/Inventroincs/Custom Brand8 years
LS-G02-60D60W130LM/W7800LM3000K-6500KIP66,IK08Philips/CreeMeanwell/Inventroincs/Custom Brand8 years
LS-G02-90D90W130LM/W11700LM3000K-6500KIP66,IK08Philips/CreeMeanwell/Inventroincs/Custom Brand8 years
